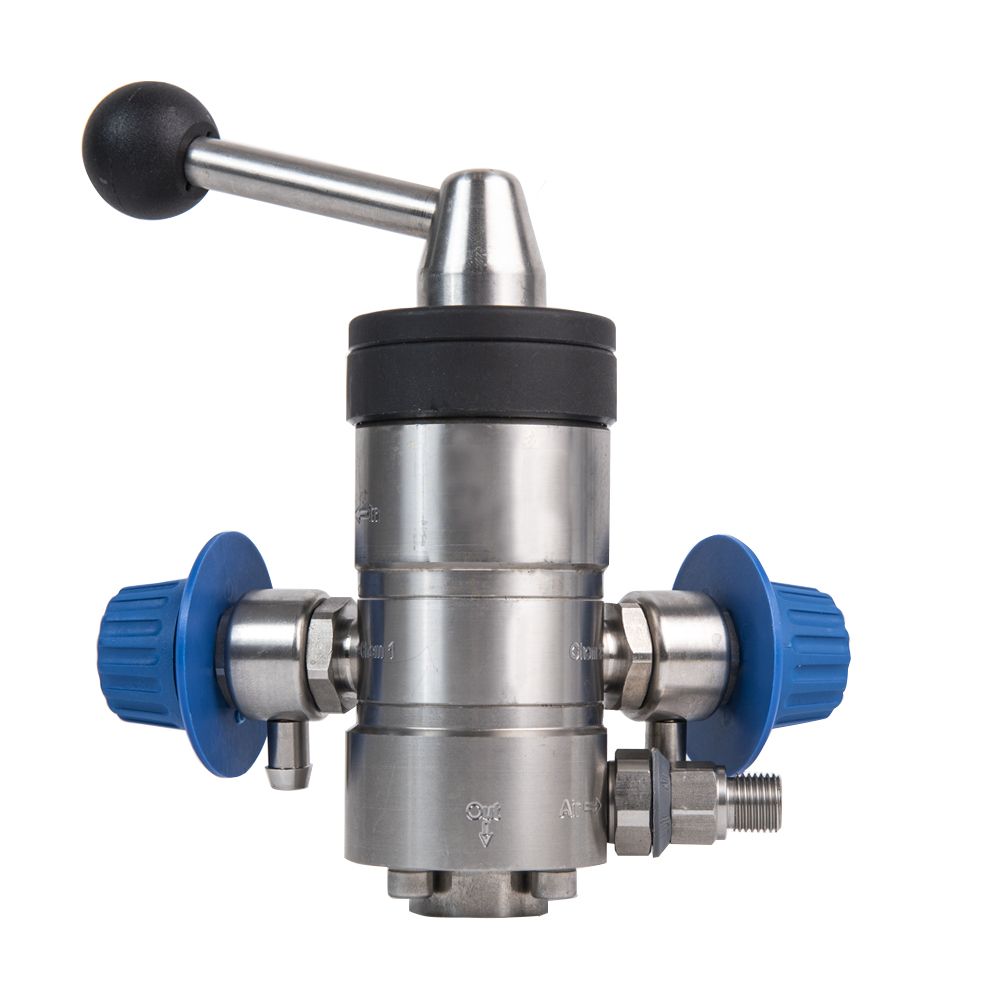

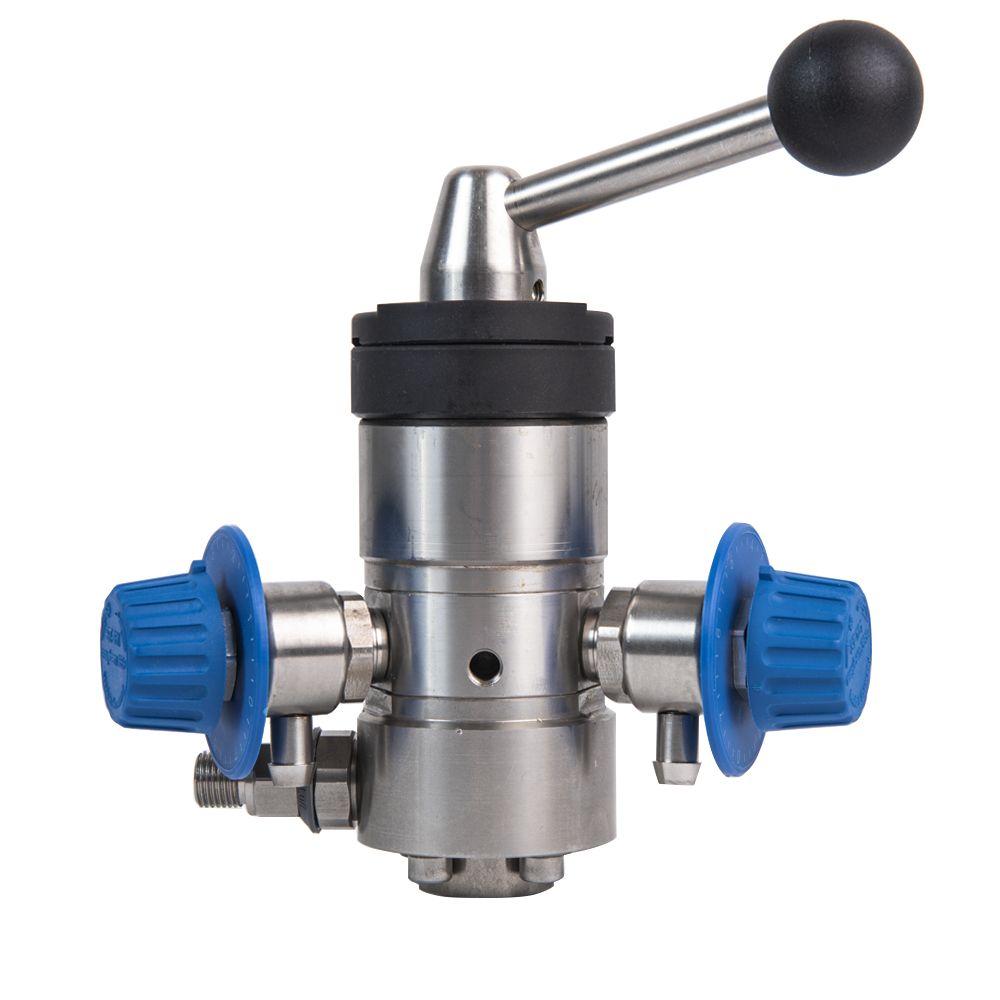

ST164 INJECTOR WITH COMPRESSED AIR MODULE AND METERING VALVES-1.4mm

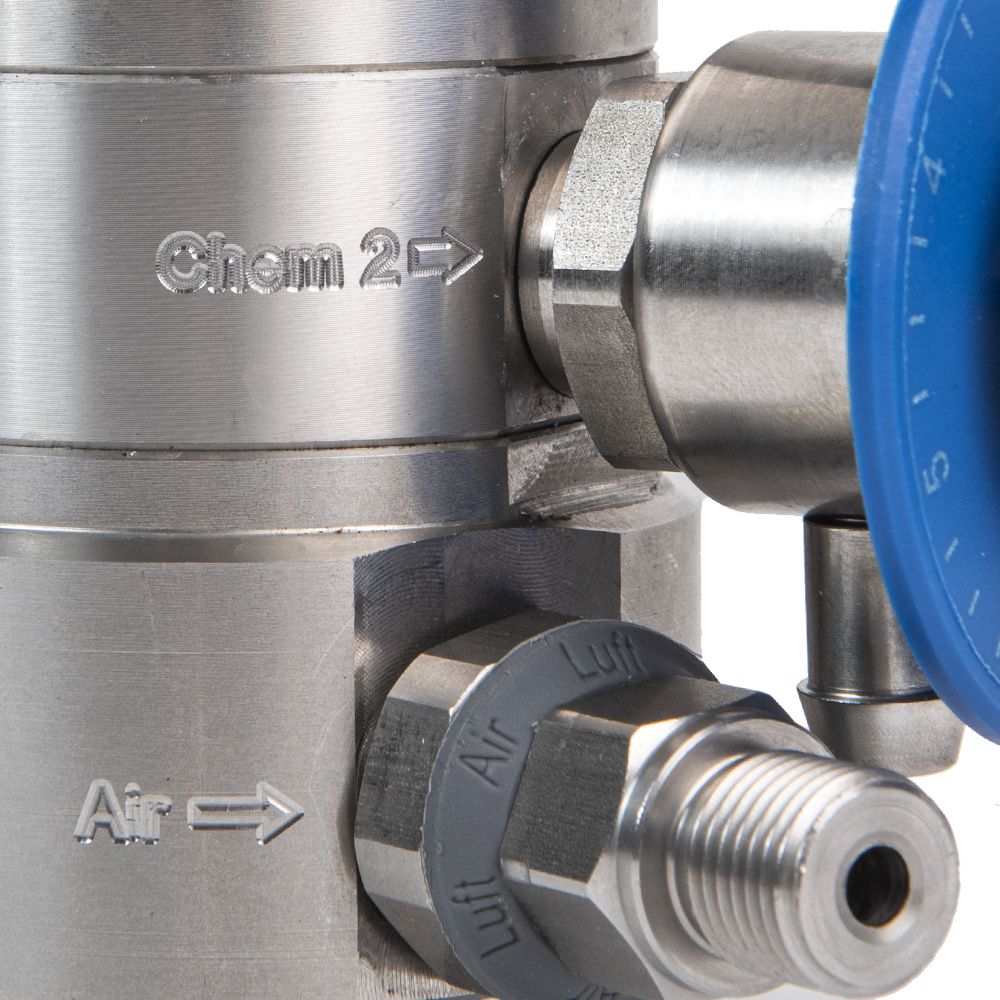

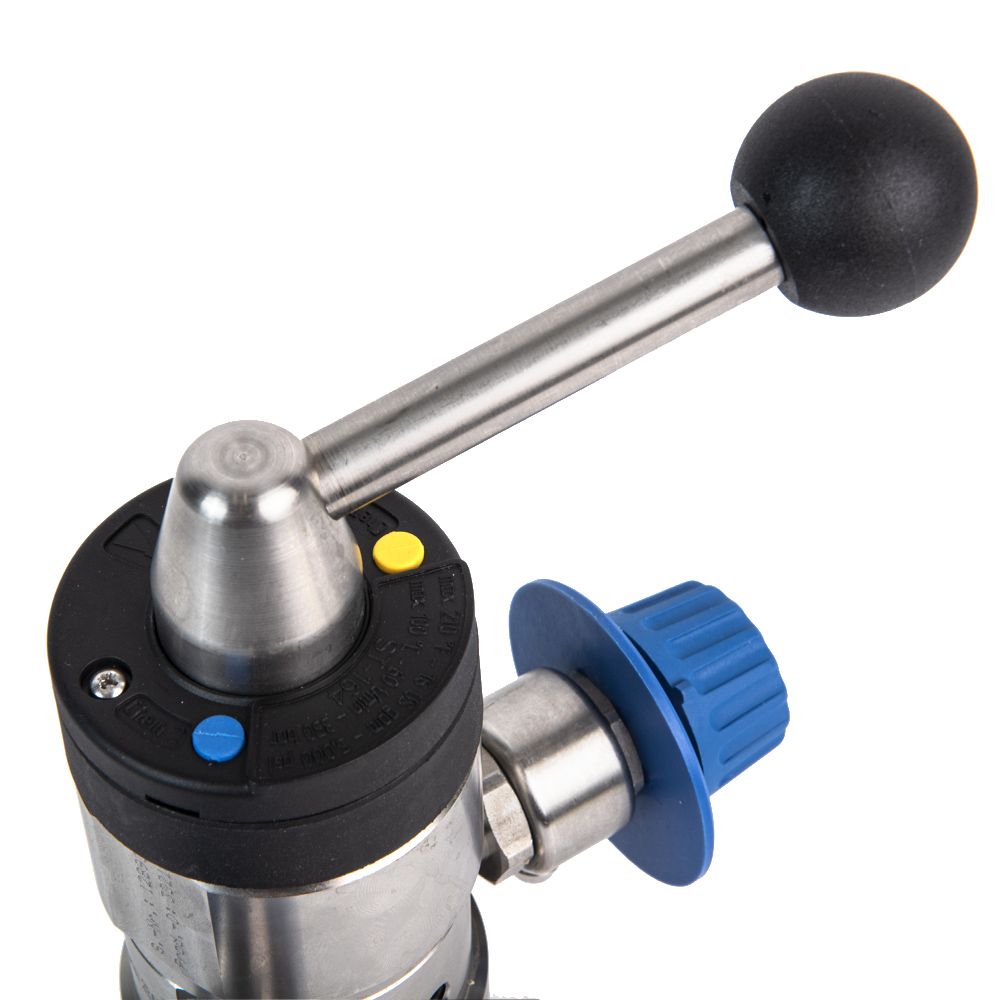

The ST164 easyfoam365+ foam Injector made from stainless steel, designed to be part of a cleaning system to produce foam. This injector has a compressed air connection, which can create  more dry sticky foam. A DN12 hose must be used with a wash gun that has 1/2" inlet and outlet, this will prevent the foam from collapsing. This injector allows the user to have up to two different chemical options attached and gives them the ability to adjust each chemical by using metering valves. The different chemicals can be selected by positioning the lever.

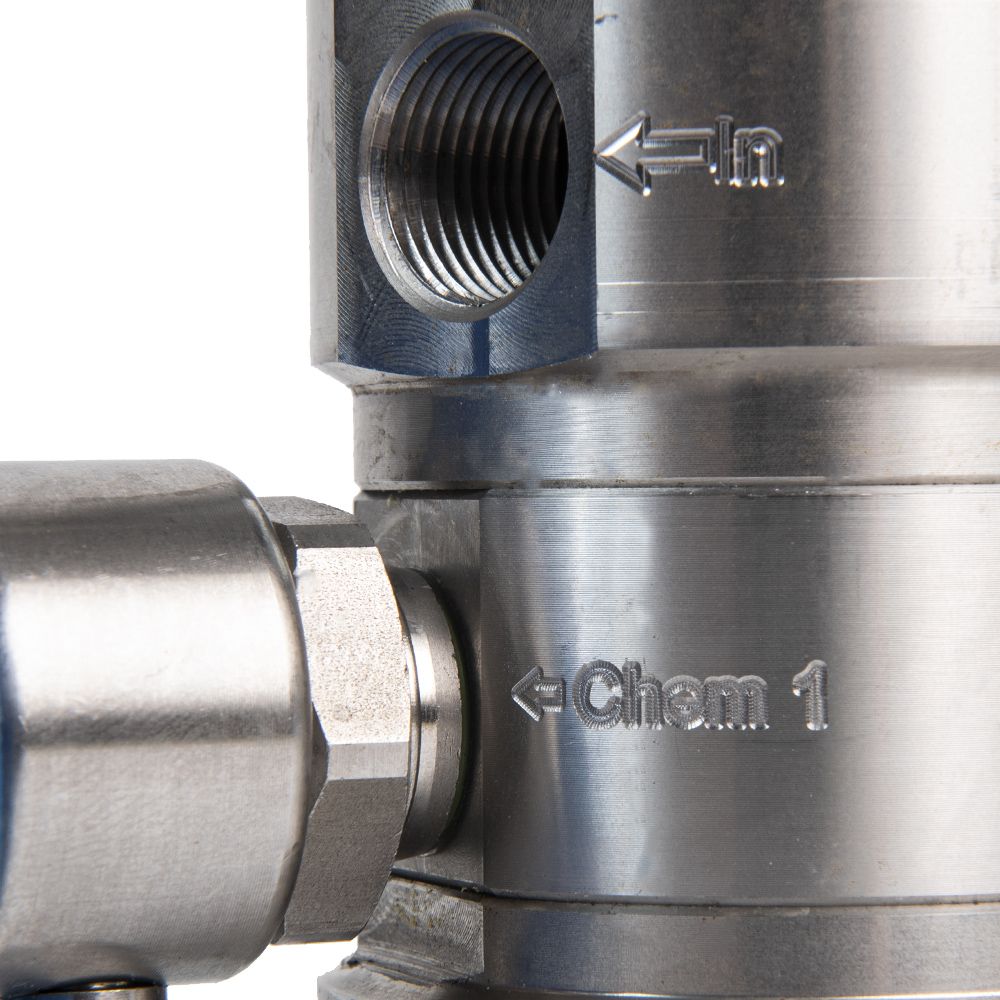

Inlet	3/8" Female
Outlet	1/2" Female
Max LPM	80 LPM
Material	Stainless Steel
Bar	350
Colour	Blue
Max Temp °C	100
Nozzle Size	1.4mm
DN Internal Diameter	9mm
Weight	2.75
Country of Origin	Germany
