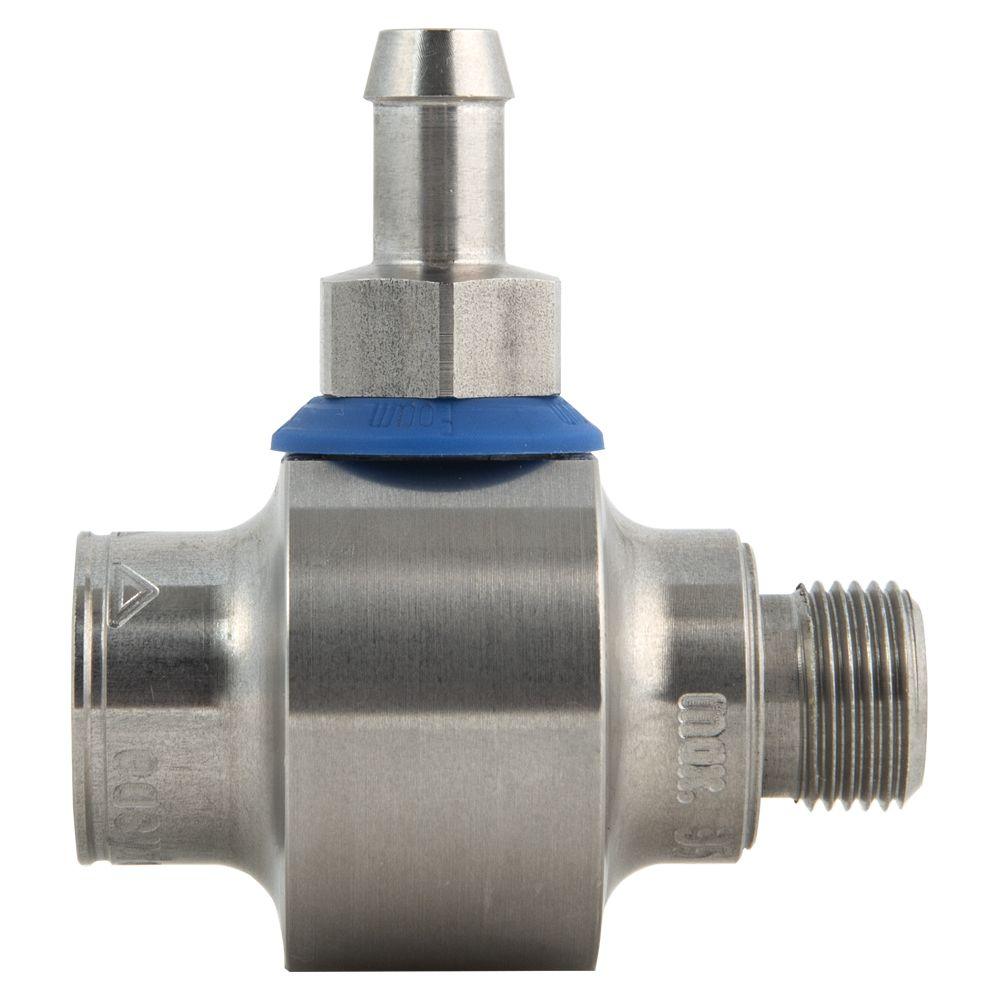

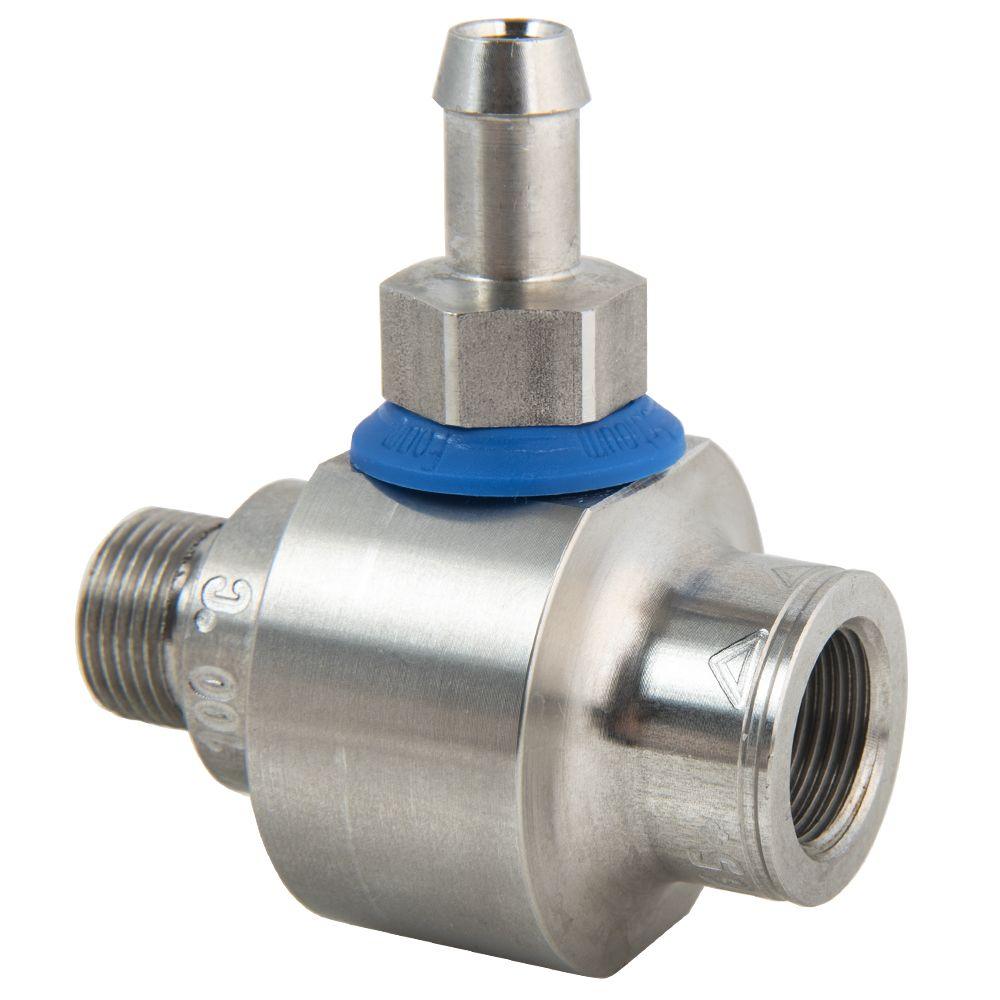

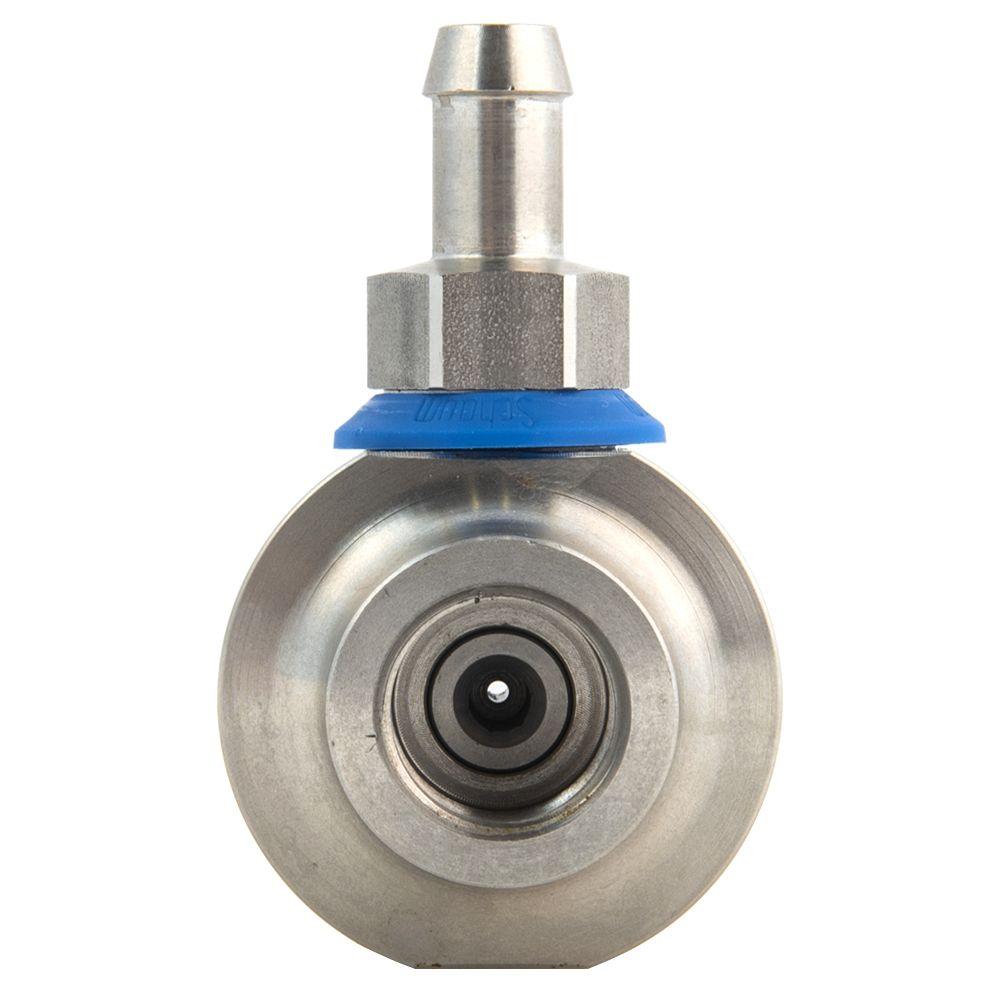

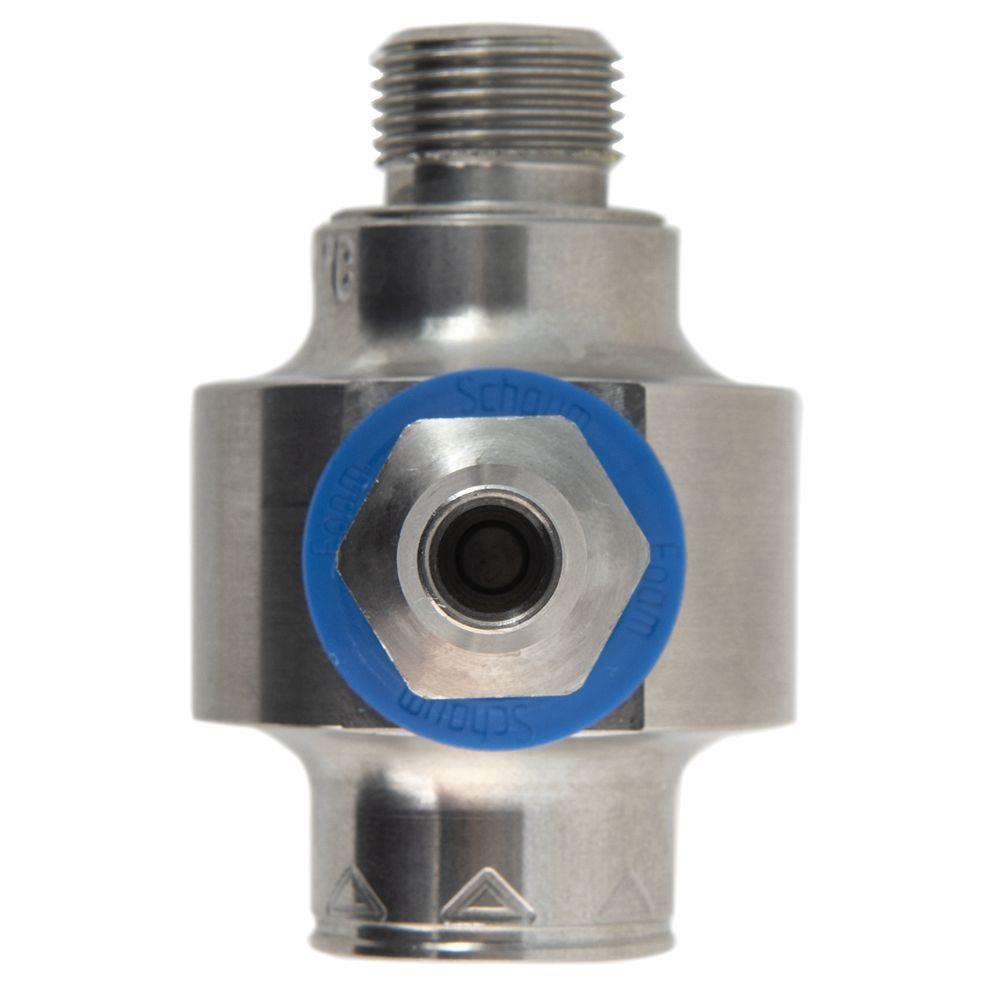

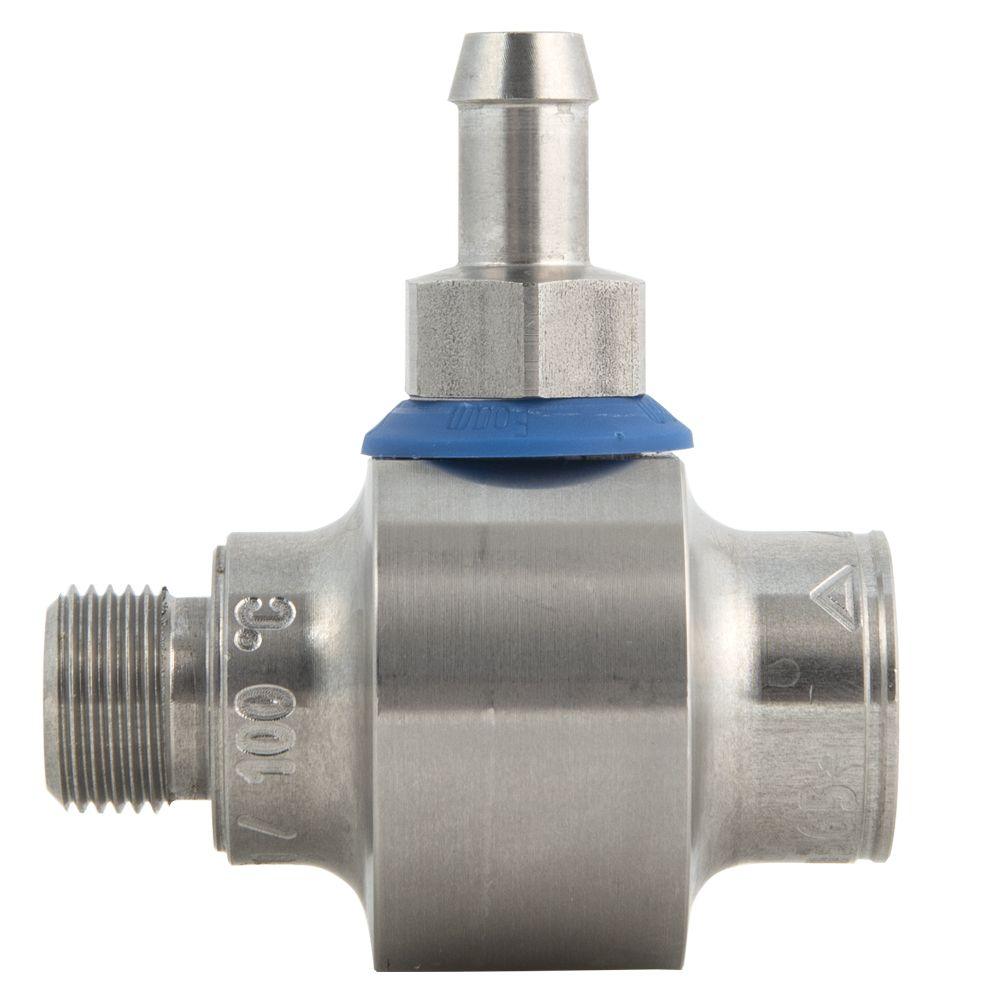

ST160 FOAM INJECTOR -1.7mm

The RM Suttner ST160 chemical injector has a restrictive orifice that the water stream is forced through. Operating this chemical injector with a device that has a low pressure nozzle such as the Suttner ST75 foam lance causes a vacuum effect within the injector. This venturi effect draws chemical up into the water stream. To ensure you select the correct foam lance or foam head for your injector please use our interactive chart below. You will need to know the flow and pressure of the machine you will be operating on.

Inlet	3/8" Female
Outlet	3/8" Male
Material	Stainless Steel
Bar	350
Max Temp °C	90
Nozzle Size	1.7mm
DN Internal Diameter	9mm
Weight	0.37
Country of Origin	Germany
